Transmission
Poles for high voltage lines
Transmission
Self-supporting poles for high-voltage electric power transmission lines, manufactured with international standards and designed using specialized software for structural analysis.
They are designed for voltage levels from 57.5 kV to 230 kV.

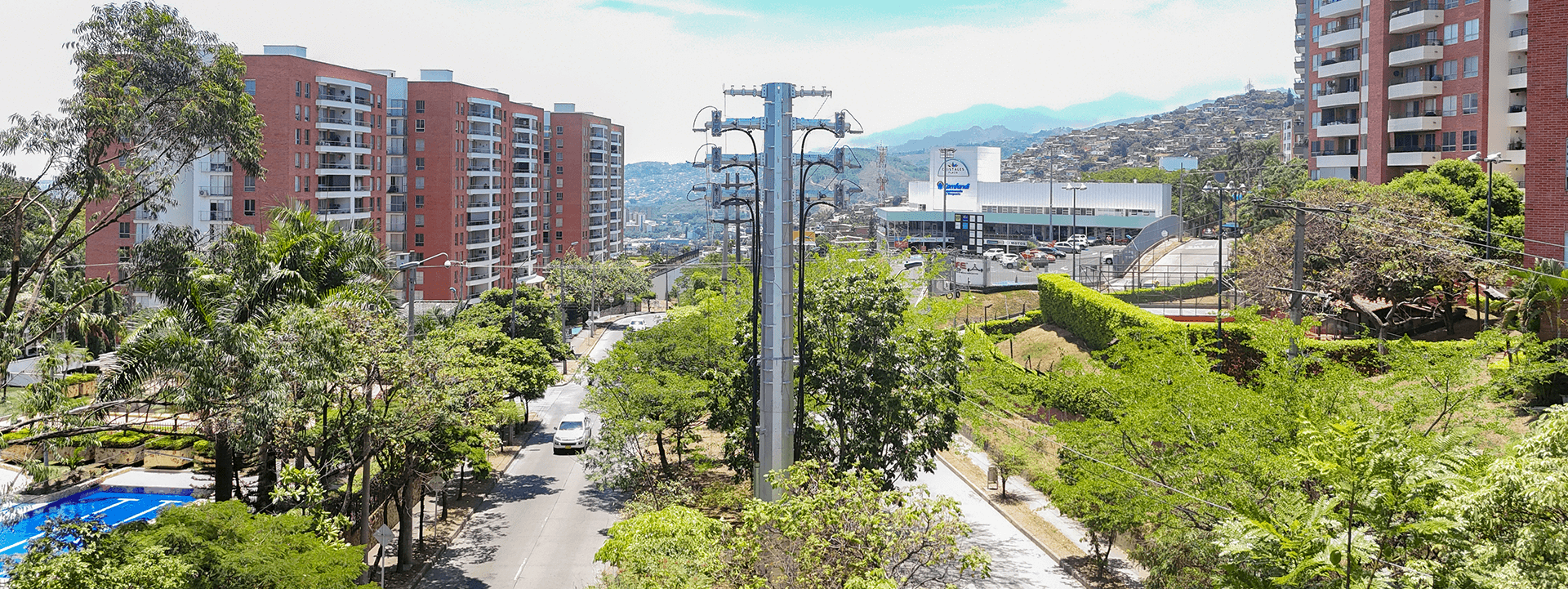

Because they have a smaller support area, they are very useful for urban areas where there is little space for their installation. They are the best alternative to reduce costs in negotiating land or easements. Ideal for urban areas.
PRFV
Advantages of Transmission Line Poles
Transmission poles can be installed in any type of area and are ideal for urban locations where there is little space for their installation since they only require one support point, which reduces foundation costs.
The costs of acquiring land for the installation of transmission poles are
less than the items required for the installation of lattice towers, given that, for
RETIE standard the posts need less length in width and easement.
They are designed in truncated conical sections, which allow them to be transported
inside another, taking up less space and guaranteeing better location and handling in areas that are difficult to access.
The visual impact is much less compared to lattice structures.
Technical specifications
Material
Steel ASTM A- 572 Gr.50 and Gr. 65. y PRFV.
Finishing
Hot-dip galvanized under ASTM – A123 standard or hot-dip galvanized and painted (duplex system).
Number of sections
Depending on height.
Height
From 18 to 40 meters.
Innovation in poles and masts
Learn about Transmission's successful projects
Everything you need to know
Frequently asked questions
What are the advantages of hot-dip galvanizing for steel protection?
Hot-dip galvanizing provides effective and economical protection against corrosion, prolonging the life of the steel and reducing the need for maintenance for many years.
What is the duplex system and in which environments is it recommended?
The duplex system combines hot-dip galvanizing and a paint coating, ideal for highly corrosive areas, providing more durable and effective protection.
What types of poles does DIPOLE manufacture and for what applications?
DIPOLE manufactures galvanized steel and fiberglass poles, with seven different lines that cover needs in distribution, lighting, high voltage, solar energy and more.
How does Dimel Ingeniería guarantee the quality and sustainability of its processes?
Dimel Ingeniería complies with ISO standards and RETIE and RETILAP certificates, in addition to implementing environmental management processes to minimize resource consumption and waste generation.
What services does Dimel Ingeniería offer in Peru?
Dimel Ingeniería S.A.C. in Peru offers solutions for electrical distribution companies and contractors, with a plant in Lurin, Lima, dedicated to the manufacture of GRP (fiberglass) poles.
